H13 steel / H13 hot work mould steel bar

  • USD 1200 - 2800 / Ton
  • 5 Ton/Tons
  • songshun
  • Die Steel Bar
  • 86-769-82285809
  • 86-769-85475596
  • Tag:H13 hot work mould steel
  • Supplier - Dongguan songshun mould steel CO.,LTD.
  • China (Mainland)China (Mainland)
  • US$10 Million - US$50 Million
  • 51 - 100 People
  • Manufacturer,Distributor/Wholesaler,Agent
  • North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
  •
  • Mr.song
  • 86-769-85475596
Post Date : April 10
Product Details
Company Profile
Inquiry Records(2)

Item specifics

songshun
Die Steel Bar
86-769-82285809
86-769-85475596
80mm-480mm
Is Alloy
H13/1.2344/SKD61/4Cr2NiMnMo
Mold Steel
http://www.songshunsteel.com/
China (Mainland),Guangdong
admin@songshunsteel.com
Hot work steel
Other,Hot Rolled/Forged/Clod Drawn
Alloy Steel Bar
AISI,ASTM,BS,DIN,GB,JIS

Specifications

Dongguan songshun mould steel CO.,LTD. as China's largest steel wholesaler, Main Steel has: 4140 steel,D2 steel,4130 steel,H13 steel,P20 steel,AISI 4340 steel,1.2738 steel,1.2379 steel,1.2344 steel,1.2080 steel etc.. You can learn more about our products by our official website. If you are interested in our products, please contact us by email. We hope to establish long-term cooperation relationship with you. songshun1504

1,Size of H13 Steel

Round bar

Diameter(mm)

Length (mm)

Max:800

Max:9000

Plate

Thickness(mm)

Width (mm)

Length (mm)

Max:800

Max:1500

Max:6000

The specification can be customized.

2,Chemical Compositons

Grade

C

Si

Mn

P

S

Cr

Mo

V

H13

0.32-0.45

0.80-1.20

0.20-0.50

≤0.030

≤0.030

4.75-5.50

1.10-1.75

0.80-1.20

4Cr5MoSiV

0.33-0.43

0.80-1.20

0.20-0.50

≤0.030

≤0.030

4.75-5.50

1.10-1.60

0.30-0.60

1.2344

0.33-0.41

0.80-1.20

0.25-0.50

≤0.030

≤0.020

4.80-5.50

1.10-1.50

0.30-0.50
SKD61 0.35~0.42 0.80-1.20 0.25-0.50 ≤0.030 ≤0.020 4.80-5.50

1.00-1.50

0.80-1.15

3,Features of H13 Steel

1, Hot work tool steel

2, Very good red-hardness with toughnes

3, Tools may be water-cooled in service

4, May be cold-hobbed in the annealed condition

4,Typical Applications

1, Casting dies for aluminium, magnesium and zinc

2, Extrusion dies and adaptor ring

3, Hot stamping and press forge dies

4, Shear blades for hot work and hot swaging dies

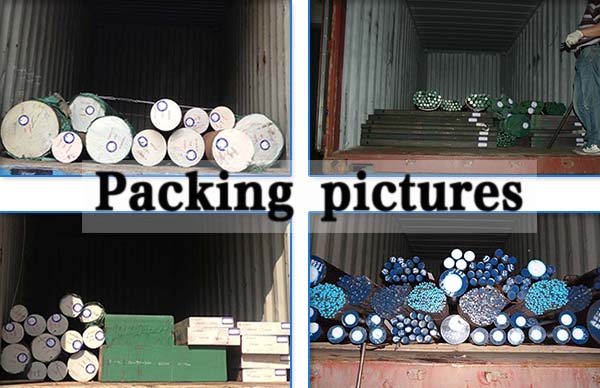

Packaging & Shipping
The container is usually 20 ft

Company Information
Songshun Company Introduction
  • Located in Chang'an Town - the famous town of mould in Pearl River Delta;
  • Providing complete services from manufacturing and marketing to distributing;
  • Steel exported all over the world;
  • Service like peeling,milling,grinding,cutting and heat treatment etc...
  • All steel must pass high quality detection;
  • 24/7 hours online service with quick response !

Main products

Hot work tool steel

DIN

1.2344,1.2343,1.2365,1.2581,1.2367,1.2714 etc.

AISI

H13,H11,H10,H21,L6 etc.

JIS

SKD61,SKD6,SKD5,SKT4 etc.

Cold work too steel

DIN

1.2601,1.2379,1.2080,1.2363,1.2842,1.2419,1.2510,1.2550,1.2767 etc.

AISI

D2,D3,A2,O2,O1 etc.

JIS

SKD1,SKD11,STD12,SKS31,SKS3 etc.

Plastic mould steel

DIN

1.2083,1.2311,1.2312,1.2316,1.2738 etc.

AISI

P20, P20+Ni,P20+S,420 etc.

JIS

NAK80

High speed tool steel

DIN

1.3355,1.3343

AISI

T1,M2

JIS

SKH2,SKH51

Structural alloy steel

DIN

1.7225,1.6511

AISI

4140,4340

JIS

SCM440

We also supply customized special steel, contact us for more information !

FAQ

1.Q:Are your a factory or a trading company?

A:We are factory.

2.Q:Where is your factory located?How can I visit there?

A:Our factory is located in Dongguan city,you can fly to Baoan airport

and we will arrange people to go there pick you up.

3.Q:How can I get some sample?

A:We are honored to offer you samples

4.Q:What are the difference between you and other steel company?

A:Quality first! The price will be changed according to your order.

The rechargeable sample's will return to you after you offer the deposit!

Our company are full of chinese culture,Won't you want to come here^.^?

The sales are beautiful and handsome0.0!

H13 steel / H13 hot work mould steel bar

H13 steel / H13 hot work mould steel bar

H13 steel / H13 hot work mould steel bar

H13 steel / H13 hot work mould steel bar

Company Related ProductsView the Seller's Products
1.2738 steel / Hot Sell Flat P20+Ni plate

1.2738 steel / Hot Sell Flat P20+Ni plate

1.2738 steel / Hot Sell Flat P20+Ni plate

Dongguan songshun mould steel CO.,LTD. as China's largest steel wholesaler, Main Steel has: 4140 steel,D2 steel,4130 steel,H13 steel,P20 steel,AISI 4340 steel,1.2738 steel,1.2379 steel,1.2344 steel,1.2080 steel etc.. You can learn more about our products by our official website. If you are interested in our products, please contact us by email. We hope to establish long-term cooperation relationship with you. songshun1504

What are details of P20+Ni Plastic Mould Steel ?

Name P20+Ni Flat Steel,Plastic Mould Steel,P20+Ni Steel Specs
Features
1, Alloy tool steel which offers good machineability;
2, Excellent polished finish for large section;
3, Supplied in the hardened and tempered condition ready for machining;
4, Can be case hardened or nitrided.
Applications 1, Ideally suited for the production of plastic moulds;
2, High-gloss requirements of the mold application;
3, Large mould, such as fridge and air-conditioner.
Sizes Round bar Diameter(mm) Length(mm)
Max 800 Max 9000
Plate Thickness(mm) Width(mm) Length(mm)
Max 800 Max 2200 Max 9000

The above is our regular size, We also can provide customized sizes!

Packing

20ft: GW 27T; (5.80mX2.13mX2.18m)

40ft: GW 27T; (11.8mX2.13mX2.18m)

Price The price will change according to the weight of the steel you need.

What is the similar steel grades?
AISI/SAE DIN JIS SIAU GB
P20+Ni 1.2738 ---- ---- 4Cr2NiMnMo
What are the chemical compositions?
C Si Mn P S Cr Mo Ni
0.35-0.45 0.20-0.40 1.30-1.60 ≤0.030 ≤0.030 1.80-2.10 0.15-0.25 0.90-1.20

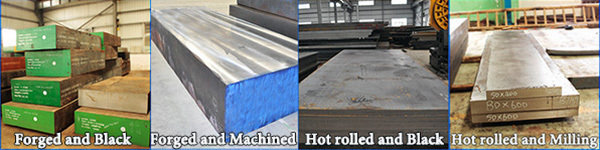

How about the surface treatment?

Packaging & Shipping

Our Services

Why can I believe your steel?

1, All products must pass the following quality tests to meet you requirments!
2, Our steel has passed the following certificates!
3, Providing all kinds of cutting service for you!
4, There are 50,000 tons in our stock!
Company show!

1.2738 steel / Hot Sell Flat P20+Ni plate

1.2738 steel / Hot Sell Flat P20+Ni plate

1.2738 steel / Hot Sell Flat P20+Ni plate

1.2738 steel / Hot Sell Flat P20+Ni plate

Detail more >>
D2 steel / Steel flat bar D2 plate

D2 steel / Steel flat bar D2 plate

D2 steel / Steel flat bar D2 plate

Dongguan songshun mould steel CO.,LTD. as China's largest steel wholesaler, Main Steel has: 4140 steel,D2 steel,4130 steel,H13 steel,P20 steel,AISI 4340 steel,1.2738 steel,1.2379 steel,1.2344 steel,1.2080 steel etc.. You can learn more about our products by our official website. If you are interested in our products, please contact us by email. We hope to establish long-term cooperation relationship with you. songshun1504

1,Size of D2 tool steel

Round bar

Diameter(mm)

Length (mm)

Max:800

Max: 9000

Plate

Thickness(mm)

Width (mm)

Length (mm)

Max:800

Max:1000

Max:6000

The specification can be customized.

2,Chemical Compositions

Grade

C

Si

Mn

P

S

Cr

Mo

Ni

Cr12Mo1V1

1.40-1.60

≤0.60

≤0.60

≤0.030

≤0.035

≤ 0.03

0.70-1.20

-

D2

1.40-1.60

0.10-0.60

0.20-0.60

≤0.030

≤0.030

11.00-13.00

0.70-1.20

-

1.2379

1.45-1.60

0.10-0.60

0.20-0.60

≤0.030

≤0.030

11.00-13.00

0.70-1.00

-
SKD10 1.40~1.60 ≤0.40 ≤0.60 ≤0.030 ≤0.030 11.00~13.00

0.80-1.20

3,Features of Tool Steel D2

1, High carbon high chromium tool steel

2, High wear resistance and toughness

3, Offers a measure of corrosion resistance when polished

4, Alternative to oil hardening tool steel

4,Typical Applications

1, Wide variety of tool making applications

2, Blanking dies and punches

3, Deep drawing dies, cupping dies, forming dies, sheet metal forming rolls

4, Master hobs for cold hobbing moulds and cut moulds for plastics

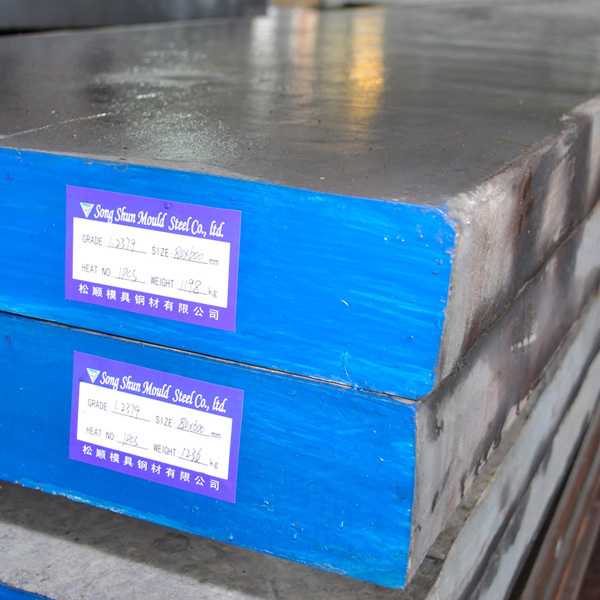

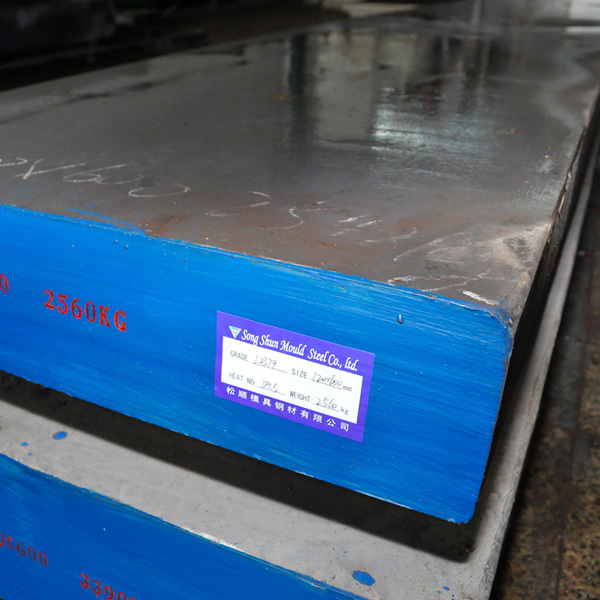

Some Photoes of D2 Carbon Steel

Packaging & Shipping
The container is usually 20 ft

Company Information
Songshun Company Introduction
  • Located in Chang'an Town - the famous town of mould in Pearl River Delta;
  • Providing complete services from manufacturing and marketing to distributing;
  • Steel exported all over the world;
  • Service like peeling,milling,grinding,cutting and heat treatment etc...
  • All steel must pass high quality detection;
  • 24/7 hours online service with quick response !

Main products

Hot work tool steel

DIN

1.2344,1.2343,1.2365,1.2581,1.2367,1.2714 etc.

AISI

H13,H11,H10,H21,L6 etc.

JIS

SKD61,SKD6,SKD5,SKT4 etc.

Cold work too steel

DIN

1.2601,1.2379,1.2080,1.2363,1.2842,1.2419,1.2510,1.2550,1.2767 etc.

AISI

D2,D3,A2,O2,O1 etc.

JIS

SKD1,SKD11,STD12,SKS31,SKS3 etc.

Plastic mould steel

DIN

1.2083,1.2311,1.2312,1.2316,1.2738 etc.

AISI

P20, P20+Ni,P20+S,420 etc.

JIS

NAK80

High speed tool steel

DIN

1.3355,1.3343

AISI

T1,M2

JIS

SKH2,SKH51

Structural alloy steel

DIN

1.7225,1.6511

AISI

4140,4340

JIS

SCM440

We also supply customized special steel, contact us for more information !

FAQ

1.Q:Are your a factory or a trading company?

A:We are factory.

2.Q:Where is your factory located?How can I visit there?

A:Our factory is located in Dongguan city,you can fly to Baoan airport

and we will arrange people to go there pick you up.

3.Q:How can I get some sample?

A:We are honored to offer you samples

4.Q:What are the difference between you and other steel company?

A:Quality first! The price will be changed according to your order.

The rechargeable sample's will return to you after you offer the deposit!

Our company are full of chinese culture,Won't you want to come here^.^?

The sales are beautiful and handsome0.0!

D2 steel / Steel flat bar D2 plate

D2 steel / Steel flat bar D2 plate

D2 steel / Steel flat bar D2 plate

D2 steel / Steel flat bar D2 plate

Detail more >>
